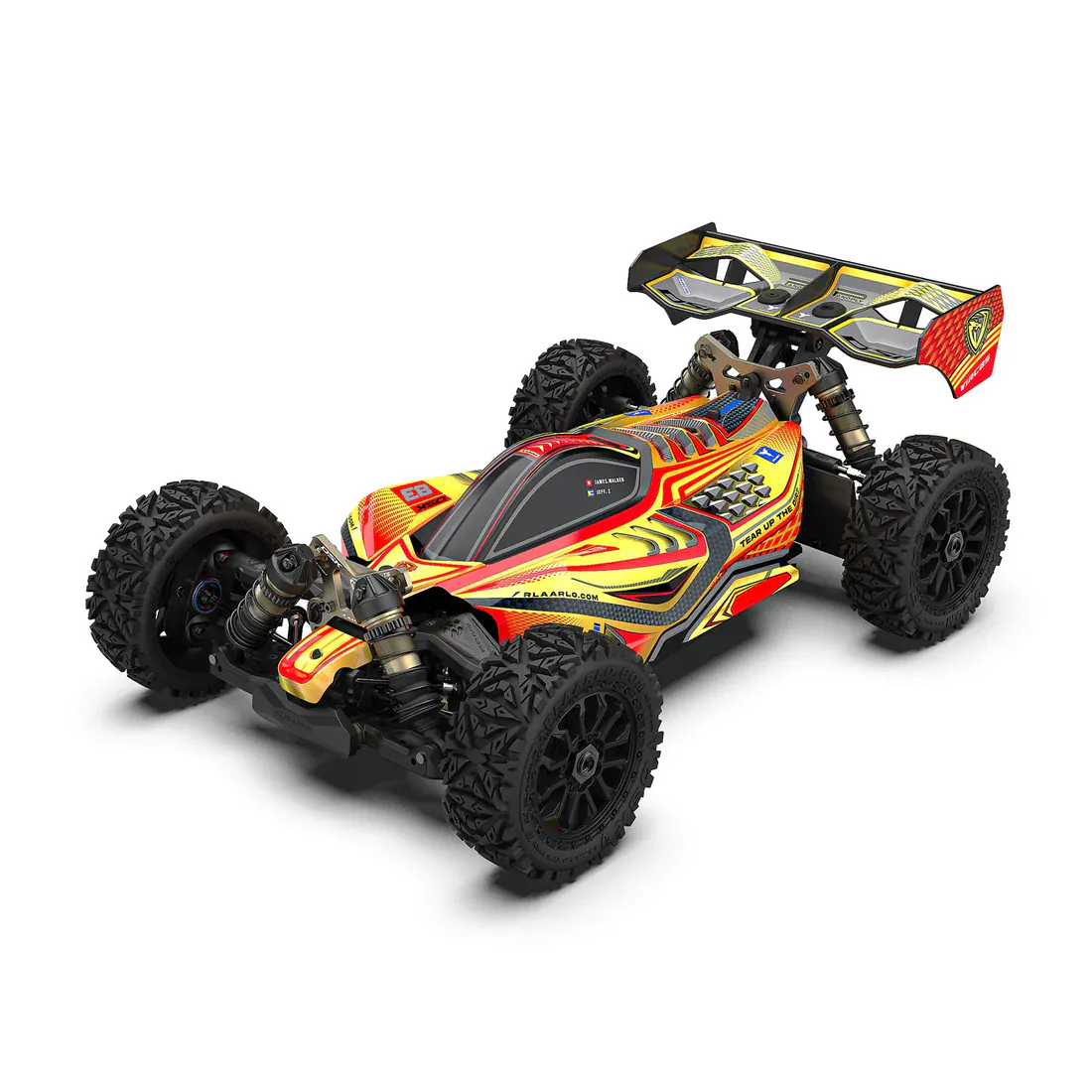

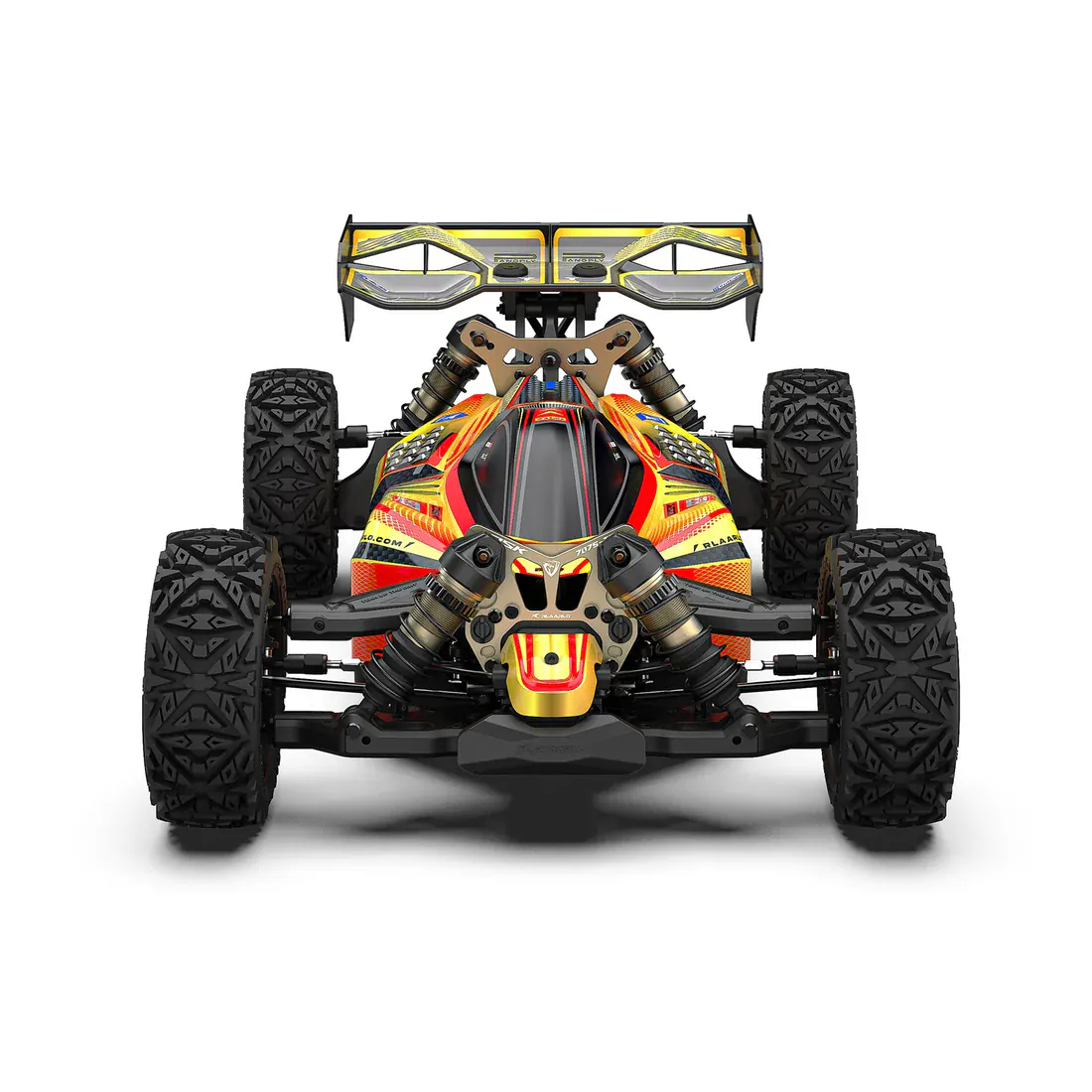

Rlaarlo 1/8 DSK Dragon Scale Knight Brushless RC Buggy - Red
This is the Rlaarlo 1/8 DSK Dragon Scale Knight Brushless RC Buggy - Red.
Built for serious off-road performance, the Rlaarlo DSK Dragon Scale Knight is a competition-inspired 1/8 scale 4WD buggy engineered for speed, precise handling and extensive adjustability.
Every part of the DSK has been designed to deliver stable, predictable performance across race tracks, dirt surfaces and demanding off-road terrain. Its premium 7075-T6 aluminium chassis, competition-grade drivetrain and quick-release component system make it an impressive platform for experienced RC enthusiasts looking for a powerful buggy that can also be tuned to suit their driving style.
The RTR version comes equipped with a 4274 2050KV brushless motor, 180A brushless ESC and 45kg coreless steering servo, with support for battery setups from 2S through to 6S. In suitable conditions and with the appropriate battery and gearing, the DSK is capable of speeds of up to approximately 80km/h.
One Chassis, Two Motor Layouts
One of the DSK’s standout features is its convertible drivetrain layout. The buggy can be configured with either a front-mounted or rear-mounted motor without replacing the chassis or drilling additional mounting holes.
Simply reposition the motor mount, adjust the centre differential location and rearrange the supplied battery box and electronics components. This allows experienced drivers to experiment with weight distribution and handling characteristics to suit different tracks and driving conditions.
Competition-Grade Construction
The DSK is built around a hard-anodised 3mm 7075-T6 aviation-grade aluminium chassis, providing an excellent balance of rigidity, strength and weight.
Additional heavy-duty components include:
- 5mm 7075-T6 aluminium front and rear shock towers
- Embedded suspension mounts
- Reinforced suspension arms
- Hardened 3.5mm hinge pins
- Quick-release upper suspension arms
- Diamond-shaped steering knuckle hubs
- Adjustable caster angles
- Front and rear anti-roll bars
- Metal-insert bearing seats
- Full rubber-shielded ball bearings
These features help the DSK withstand the forces generated during high-speed driving, hard landings and aggressive cornering.
Professional-Grade 4WD Drivetrain
Power is delivered through a shaft-driven 4WD system featuring three durable gear differentials, hardened steel gears and precision CNC-machined bevel gears.
The drivetrain has been engineered to provide smooth, efficient power transfer while maintaining the durability required for high-powered 6S operation.
Quick-release gearboxes and a quick-release centre differential make servicing and tuning easier, while universal joints help deliver consistent power to all four wheels.
Precision Suspension and Steering
Fully enclosed oil-filled coil-over shocks provide controlled suspension movement across rough terrain. The DSK also includes alternative shock pistons and suspension tuning components, allowing drivers to adjust the buggy for different surfaces and handling preferences.
Its precision steering system incorporates an adjustable waved-contact servo saver, pivot-ball suspension design and quick-adjust caster settings for responsive, predictable steering.
Aerodynamic Racing Body
The DSK is finished with a thick 1.5mm polycarbonate body shell designed for additional strength and stability.
A high-downforce rear wing features three adjustment positions, allowing the driver to alter rear grip and aerodynamic balance. All-terrain pin tyres provide dependable traction across dirt, grass and prepared off-road tracks.
Key Features
- Competition-inspired 1/8 scale off-road buggy
- Shaft-driven four-wheel drive
- Supports 2S to 6S LiPo power
- Approximately 80km/h maximum speed
- Convertible front-motor or rear-motor configuration
- No chassis replacement or drilling required to change layouts
- 3mm 7075-T6 hard-anodised aluminium chassis
- 5mm 7075-T6 aluminium shock towers
- 4274 2050KV brushless motor
- 180A brushless ESC
- 45kg coreless steering servo
- Six-channel T-RexRC radio system with up to 350-metre range
- Three heavy-duty gear differentials
- CNC-machined hardened steel bevel gears
- Quick-release front and rear gearboxes
- Quick-release centre differential
- Fully enclosed oil-filled shocks
- Front and rear anti-roll bars
- Full rubber-shielded ball bearings
- 17mm hex wheel hubs
- 1.5mm polycarbonate body shell
- Three-position adjustable high-downforce wing
- All-terrain pin tyres
- Extensive suspension, steering and drivetrain tuning options
Specifications
Vehicle type: Off-road buggy
Scale: 1/8
Recommended age: 14+
Completion level: RTR – Ready to Run / Kit – Assembly Required
Drivetrain: Shaft-driven 4WD
Power system: 2S–6S LiPo compatible
Motor type: Brushless
Maximum speed: Up to approximately 80km/h
Recommended terrain: All terrain
Length: 495–500mm
Height: 180mm
Wheelbase: 326–330mm
Front track: 285mm
Rear track: 285.5mm
Battery compartment:
- 158 x 44mm
- 140 x 48mm
Front shock length: 107mm
Rear shock length: 129mm
Wheel diameter: 74mm
Wheel width: 42mm
Tyre diameter: 118mm RTR / 115mm Kit
Tyre width: 45mm
Wheel hex: 17mm
Bearings: Full rubber-shielded ball bearings
Differentials: Three gear differentials
Gear pitch: MOD 1.0
Spur gear: 46T
Motor pinion: 17T
Internal drive ratio: 2.71
Overall drive ratio: 9.7
Chassis: 3mm 7075-T6 aviation-grade aluminium alloy, hard anodised
Front shock tower: 5mm 7075-T6 aviation-grade aluminium alloy
Rear shock tower: 5mm 7075-T6 aviation-grade aluminium alloy
Spur gear material: Hardened 40CrMo steel
Bevel gears: Precision CNC-machined hardened steel
Body: 1.5mm polycarbonate
Motor: 4274 2050KV brushless
Servo: 45kg coreless servo
Transmitter: Six-channel T-RexRC transmitter with up to 350-metre range
Included in the Box
- Rlaarlo DSK Dragon Scale Knight buggy
- Instruction manual
- Two brand sticker sheets
- Chassis operation guide
- Body decal sheet
- Rear wing decal
- Upgrade parts card
- 1.5mm L-shaped hex wrench
- 2.0mm L-shaped hex wrench
- 2.5mm L-shaped hex wrench
- 3.0mm L-shaped hex wrench
- Phillips socket
- 17mm socket wrench with handle
- Two differential seals
- Four 14 x 16 x 0.2mm spacers
- Four 1.1mm shock pistons
- Four 1.3mm shock pistons
- Servo arm modification kit
- Rear support modification kit
- Dual battery box modification kit
- Front-motor receiver box modification kit
- Front-motor servo mount modification kit
- Mud flap kit
Required to Complete
- Compatible 2S–6S LiPo battery
- LiPo-compatible battery charger
- AA batteries for the transmitter, where required
Important Battery Information
The DSK uses an XT90 battery connector. The drive battery and charger are not included and must be purchased separately.
Always confirm that your chosen battery fits within one of the available battery compartment dimensions before purchasing. High-powered 4S, 5S and 6S setups are recommended for experienced RC users only.
Maximum speed will vary depending on the battery, gearing, vehicle setup, terrain and driving conditions. Included electronics and accessories may differ between RTR and kit versions. Please refer to the selected product variant for exact contents.
